Sale!

UNI-T UT89XD Digital Multimeter True RMS Tester AC DC Voltmeter Ammeter 1000V 20A Capacitance Freque...

ر.س 345.00 ر.س 320.00

1 in stock

Compare
SKU: 33003618613 Category: Brand:

Description

UNI-T UT89XD True RMS Digital Multimeter Tester AC DC Voltmeter Ammeter 1000V 20A Capacitance Frequency Resistance Measure LED

>>>>>Highlight

UT89X/UT89XD is a reliable hand-held 35/6 bit digital multimeter with true RMS sine wave measurement.

It can measure Max. 1000V DC/AC voltage, Max. 20A DC/AC current, resistance, capacitance, frequency, diode, hFE, continuity and NCV, quickly distinguishing between neutral and live wires accurately. UT89X can measure temperature and detect neutral and live wires with a test lead. UT89XD can perform LED test. Equipped with audible and visible alarm, flashlight and auto backlight functions, this series can be used in dark environment. It attracts users with its bi-color durable case, modern exterior and multiple functions.

>>>>>Main Features

1)Double injection, durable and ergonomic
2)Audio/visual alarm (applied in voltage/currenVcapacitance/diode/transistor/ continuity/NCV/LED measurement)
3)Up to 1000V voltage measurement
4)Up to 20A current measurement
5)NCV measurement with voltage levels can measure voltage down to about AC 12V/50Hz and distinguish live/neutral wires by sensing

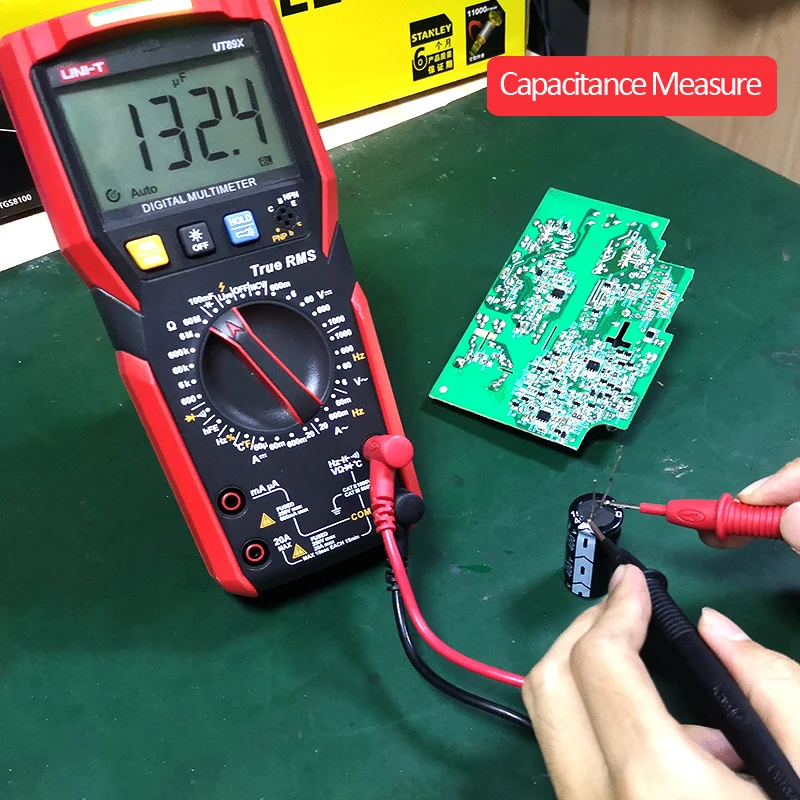

6)Up to 100mF capacitance measurement
7)LED measurement can output voltage about 12V/5mA

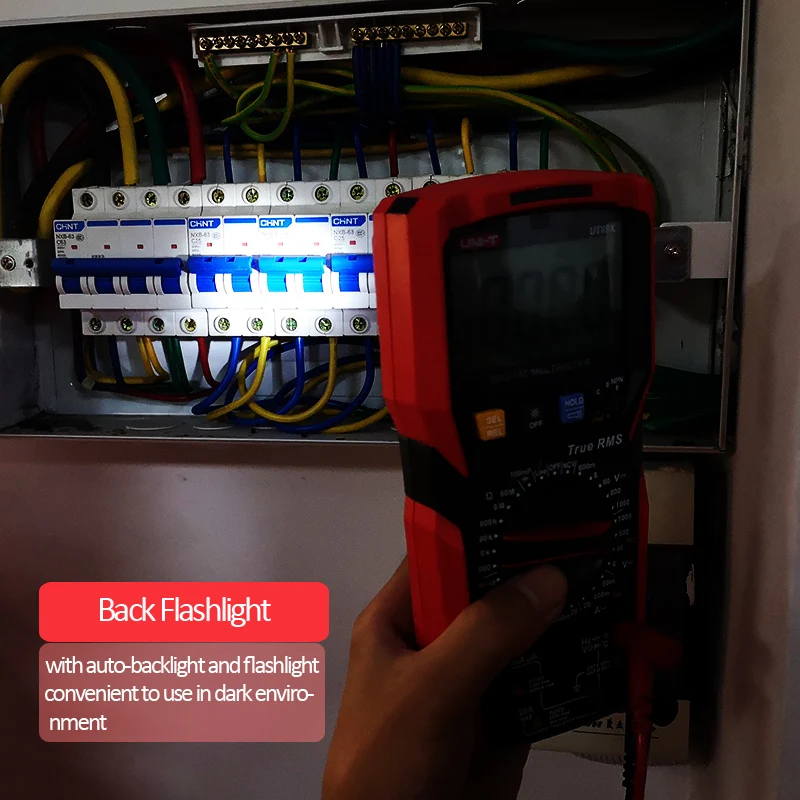

8)LCD auto backlight and flashlight

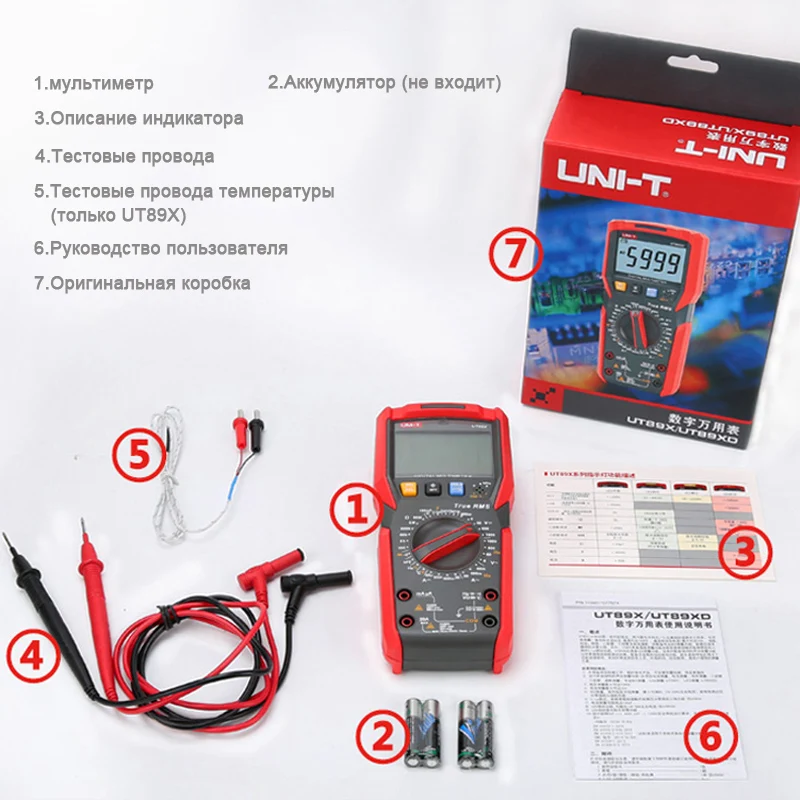

Gifts Include

1 Pair * Multimeter Probes, 1 Pair * Alligator Clips (UT89X/UT89XD)

1 Original Pouch Bag, 1 Pair * Alligator Clips(UT89X/UT89XD with Bag)

>>>>>Technical Data

Specifications

Range

UT89X

UT89XD

DC voltage (V)

600mV/6V/60V/600V/1000V

±(0.5%+2)

±(0.5%+2)

AC voltage (V)

6V/60V/600V/1000V

±(0.8%+5)

±(0.8%+5)

DC current (A)

60μA/60mA/600mA/20A

±(0.8%+8)



60μA/6mA/60mA/600mA/20A



±(0.8%+8)

AC current (A)

60mA/600mA/20A

±(1%+12)

±(1%+12)

Resistance (Ω)

600Ω/6kΩ/60kΩ/
600kΩ/6MΩ/60MΩ

±(0.8%+3)

±(0.8%+3)

Capacitance (F)

6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF/100mF

±(2.5%+20)

±(2.5%+20)

Frequency (Hz)

9.999Hz/9.999MHz

±(0.1%+4)

±(0.1%+4)

Duty cycle

0.1%~99.9%

±(2%+5)

±(2%+5)

Temperature (℃)

-40℃~1000℃

±(2%+4)



Temperature (℉)

-40℉~1832℉

±(2%+8)



Features

Display count



6000

6000

Sampling rate



3 times/s

3 times/s

True RMS



AC voltage frequency response



45~1000Hz

45~1000Hz

AC current frequency response



45~1000Hz

45~1000Hz

Live wire test





LED test





Audible/visual alarm

V/A/Cap/Diode/hFE/NCV/Live (UT89X)/LED (UT89XD)

Diode/Continuity test



Transistor hFE



Dual range NCV test



Auto power off



Low battery indication



Data hold



Function selection

SELECT

Flashlight



Auto backlight



General Characteristics

Power

1.5V battery (R03) x 4(Battery Not Include (Air transport restrictions) )

Display

61mm x 36mm

Product color

Red and grey

Product net weight

345g

Product size

189mm x 89mm x 53mm

Standard accessories

Test lead, k-type temperature probe (UT89X)

>>>>>Picture Show

>>>>>Feedback Show

>>>>>About Us

We are one of the largest agents of UNI-T.

-We provide LIFETIME technical support

-All of our products are official authorised original UNI-T

-7*16h online after-sale support team to provide completely customer service

-We will choose the most suitable shipping method which will minimize shipping time

>>>>>Buyer Notice

Maintenance

We provide 3 months free maintenance with lifetime technical support.

The buyer should return the product in the original conditions to us. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.

Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.

Special Demand

If you have any special demands, please leave a message to us in your order.

Feedback

If you are not satisfied with our products or service, please feel free to contact us, we will try our best to solve your problem!

Please do not leave negative feedback without any communication. Thanks for your understanding in advance!

Any problems please feel free to contact us.

>>>>>Return&Refund

Additional information

Brand Name

UNI-T

DIY Supplies

Electrical

Measuring Resistance Range

600ohm/6Kohm/60Kohm/600Kohm/6Mohm/60Mohm

DC Voltage

600mV/6V/60V/600V/1000V

Operating Mode

Auto/Manual

AC Current

60mA/600mA/20A

Operating Temperature

0 – 40 ℃

Model Number

UT89XD/UT89X

Display Type

Digital Display

AC Voltage

6V/60V/600V/1000V

Measuring Capacitance Range

6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF/100mF

Measuring Inductance Range

None

DC Current

60uA/6mA/60mA/600mA/20A

Dimensions

175mm x 81mm x 48.5mm

True RMS

Yes

Diode/Continuity Test

Yes

Frequency

9.999Hz/9.999MHz

Display Digits

6000

Audible Alarm

Yes

Auto Backlight

Yes

Flashlight

Yes
