UNI-T UT61A UT61B UT61C UT61D UT61E Digital Multimeter true rms AC DC Meter Software CD & Data ...

ر.س 390.00

1 in stock

Compare
SKU: 32596972979 Category: Brand:

Description

RMS digital multimeter

By UNI-T

Features and specifications:

Buy 1 Multimeter and get 1 Pouch bag for free!

UT61 series introduction:
Digital multimeter model UT61A, UT61B, UT61C, UT61D (True RMS) and UT61E (True RMS) is an auto-ranging multimeter. The enclosure structure design adopts an advanced “co-injection” technique in order to provide sufficient insulation. The meter can measure AC/DC voltage and current resistance, diode, continuity buzzer, capacitance, frequency, temperature (C or F), hFE, and EF function.

Main Features:
1. UT61A/B/C/D/E are True RMS measurements
2. All models have analogue bar graph
3. Duty Cycle up to 0.1%-99.9%
4. Auto range and Auto power off
4. With a RS-232 connect with computer to record data(Except UT61A)
5. Data hold and MAX/MIX measurement
6. Input impedance for DCV
7. LCD back-light display(Except UT61E)
8. 22000 count display for UT61E,6000 count display for UT61C&D,4000 count display for UT61A&B
9. With Weak signals measurement
10. Continuity Buzzer alarming
11. Temperature measurement range -40 °C ~ 1000°C/-40°F~1832°F(Only UT61B&UT61C)

Parameters:
DC Voltage for UT61A:400mV/4V/40V/400V/1000V
DC Voltage for UT61B:40mV/400mV/4V/40V/400V/1000V
DC Voltage for UT61C&UT61D:60mV/600mV/6V/60V/600V/1000V
DC Voltage for UT61E:220mV/2.2V/22V/220V/1000V

AC Voltage for UT61A:400mV/4V/40V/400V/750V
AC Voltage for UT61B:40mV/400mV/4V/40V/400V/750V
AC Voltage for UT61C&UT61D:60mV/600mV/6V/60V/600V/750V
AC Voltage for UT61E:220mV/2.2V/22V/220V/750V

DC Current for UT61A&UT61B:400μA/4000μA/40mA/400mA/4A/10A
DC Current for UT61C&UT61D:600μA/6000μA/60mA/600mA/6A/10A
DC Current for UT61E:200μA/2200μA/22mA/220mA/2.2A/10A

AC Current for UT61A&UT61B:400μA/4000μA/40mA/400mA/4A/10A
AC Current for UT61C&UT61D:600μA/6000μA/60mA/600mA/6A/10A
AC Current for UT61E:200μA/2200μA/22mA/220mA/2.2A/10A

Resistance for UT61A&UT61B:400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
Resistance for UT61C&UT61D:600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Resistance for UT61E:220Ω/2.2kΩ/22kΩ/220kΩ/2.2MΩ/22MΩ/220MΩ

Capacitance for UT61A&UT61B:40nF/400nF/4μF/40μF/400μF/4000μF
Capacitance for UT61C&UT61D:40nF/400nF/4μF/40μF/400μF/4000μF
Capacitance for UT61E:22nF/220nF/2.2μF/22μF/220μF/2.2mF/22mF/220mF

Frequency for UT61A&UT61B:10Hz-10MHz
Frequency for UT61C&UT61D:10Hz-10MHz
Frequency for UT61E:10Hz-220MHz

Packages includes:
• 1 x UNI-T digital multimeter UT61A/B/C/D/E
• 1 x Test leads
• 1 x RS-232C interface cable (Except UT61A)
• 1 x Point contact K type temperature Probe (UT61B and UT61C Only)
• 1 x UT61 Multi-purpose socket
• 1 x English manual
• 1 x Software CD
• 1 x Black bag
• 1 x Color box

Showcase

UNI-T UT61 series digital multimeter

Panel details

1) LCD display
2) Hold function
3) Functional button
4) Relative measuring key
5) Peak value measurement
6) Yellow button
7) Blue button
8) Rotary switch
9) Input terminal
10) Measuring mAuA°C input
11) Measuring V Ω HZ diode input
12) COM measurement input

Specifications & functions comparison

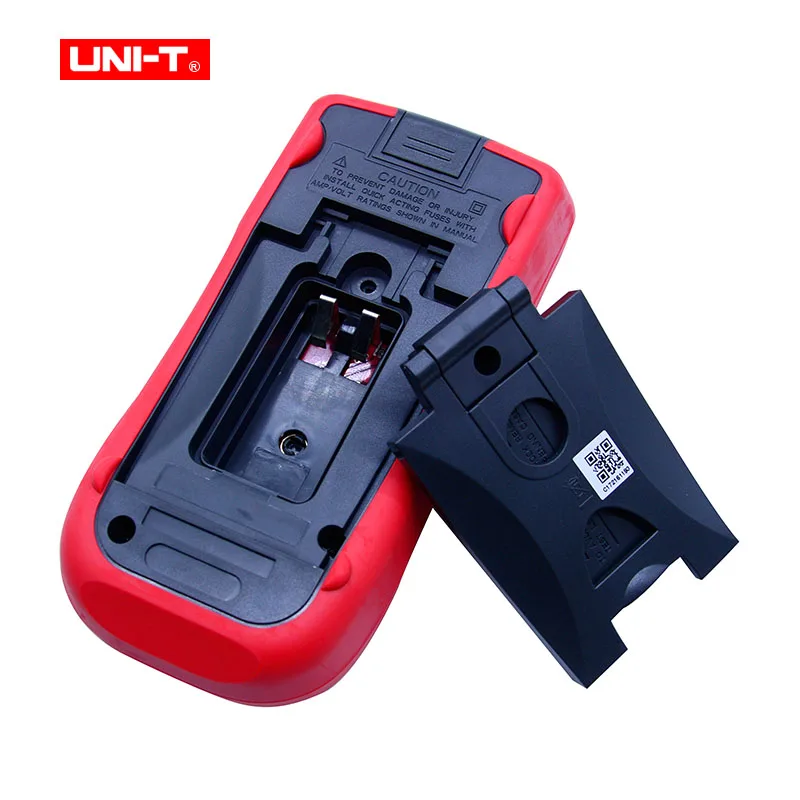

Detailed photos

Dimensions

Voltage testing

Package contents

Customer photos

CE/RoHS/ETL/GS certification

SERVICES

Hot selling products from top sellers

All orders shipped from AliExpress warehouses within 24 hours

Dedicated customer service

PACKAGING AND SHIPPING GUARANTEE

Enjoy peace of mind with AliExpress door-to-door packaging and shipping protection

Additional information

Dimensions

180mm X 87mm X 47 mm

Measuring Inductance Range

Normal

Measuring Capacitance Range

22nF/220nF/2.2uF/22uF/220uF/2.2mF/22mF/220mF(UT61E)

Model Number

UT61A/B/C/D/E

Measuring Resistance Range

220ohm/2.2Kohm/22Kohm/220Kohm/2.2Mohm/22Mohm/220Mohm(UT61E)

Operating Temperature

0 – 40 ℃

Display Type

Digital Display

Brand Name

UNI-T

DIY Supplies

Electrical

Operating Mode

A/M

Item

UNI-T digital multimeter UT61 series

hFE function

UT61A only

True RMS

UT61D/UT61E only

Bandwidth

45~400Hz(UT61A/B)/1KHz(UT61C)/3KHz(UT61D)/10KHz(UT61E)

Diode Test

Yes(All models)

Data Hold

Yes(All models)

MAX/MIN

Yes(All models)

LCD Backlight

Except UT61E

Measuring Current Range

200uA/2200uA/22mA/220mA/2.2A/10A(UT61E)

Measuring Voltage Range

DC 220mV/2.2V/22V/220V/1000V(UT61E)
