Description

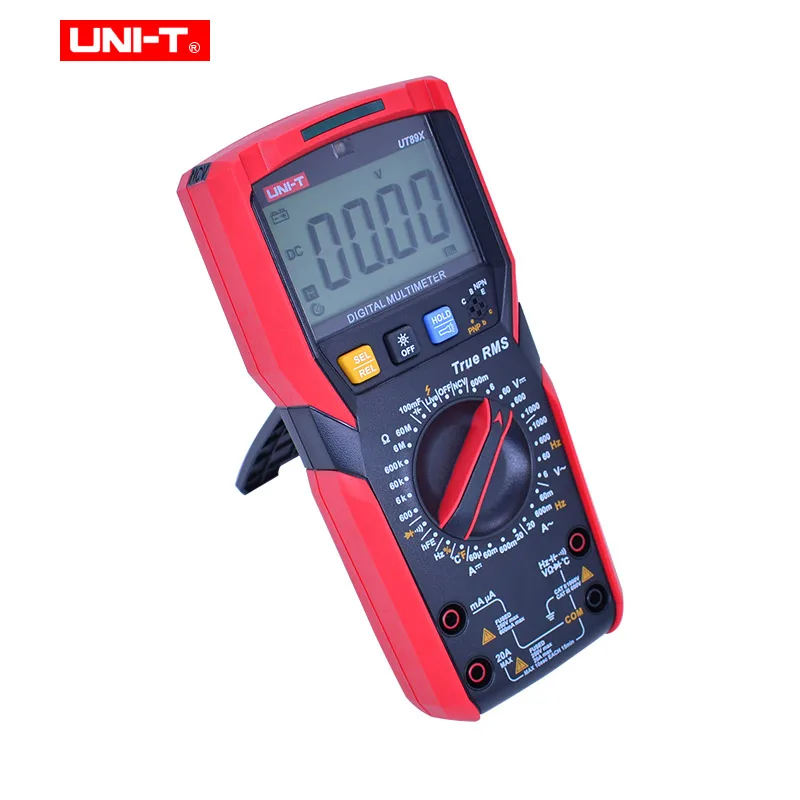

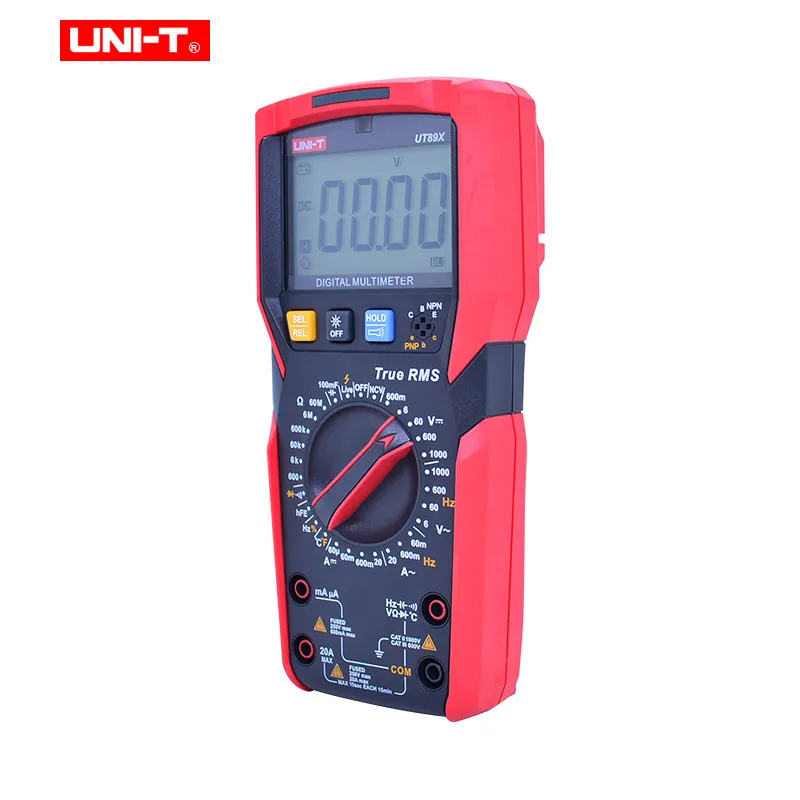

UNI-T UT89X/UT89XD true RMS Digital multimeter 20A high current digital multimeter NCV/capacitor/triode/temperature/LED test

Attention:

Battery not included because the customs inspection!!!

Description:

UT89X/UT89XD are 6000-count true RMS digital mul timeters. A unique feature is the NCV functi on which can quickly identify live and neut ral wires through light intensity. In additon, the UT89X measureable temperature and Live wire test,UT89XD can perform LED measurements.The whole series are designed with audio/visual alarm,allowing you to observe the test result more intuitively. The flashlight and the auto backlight features are also convenient when measuring in the dark. With ergonomic design and durable double injection build,UT89X/UT89XD series are perfect measurement tools for electricians and hobbyists.

Features:

1)Double injection, durable and ergonomic
2)Audio/visual alarm (applied in voltage/currenVcapacitance/diode/transistor/ continuity/NCV/LED measurement)
3)Up to 1000V voltage measurement
4)Up to 20A current measurement
5)NCV measurement with voltage levels can measure voltage down to about AC 12V/50Hz and distinguish live/neutral wires by sensing
6)Up to 100mF capacitance measurement
7)Temperature measurement range: -40-1000 ° C(Only UT89X)
8)LCD auto backlight and flashlight
9)Live wire test(Only UT89X)
10)LCD auto backlight and flashlight (Only UT89XD)

Specifications:

DC Voltage: 600mV 土(0.5%+4);6V/60V/600V土(0.5%+2);1000V 士(0.7%+10);

AC Voltage(45~400Hz):6V/60V/600V土(1.8%+5);1000V 士(1.0%+10);

AC Voltage(400~1000Hz):6V土(1.0%+8);60V/600V土(1.5%+8);1000V 士(1.8%+12);

DC Current: 60uA/6mA/60mA/600mA 土(0.8%+8); 20A 士(2.0%+5);

AC Current(45~400Hz): 60mA土(1.0%+12);600mA土(2.0%+3);20A 土(3.0%+5);

AC Current(400~1000Hz): 60mA土(1.5%+12);600mA土(2.5%+5);20A 土(3.5%+8);

Resistance: 600Ω士(0.8%+5);6kΩ/60kΩ/600kΩ士(0.8%+3);6MΩ士(1.5%+5);60MΩ士(1.5%+25);

Capacitance: 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF/100mF

Frequency(Hz): 9.999Hz/9.999MHz

Duty cycle: 0.1%~99.9%

Sampling rate:3 times/s

True RMS: √

Temperature measurement range: -40-1000 ° C (Only UT89X)

Live wire test: √(Only UT89X)

LED test: √(Only UT89XD)

Audible/visual alarm: V/A/Cap/Diode/hEF/NCV/LED

Diode/Continuity test:√

Transistor hFE:√

Dual range NCV test:√

Auto power off: √

Low battery indication: √

Data hold: √

Function selection: SELECT

Flashlight: √

Auto backlight: √

Range: Auto/Manual

Polarity: Auto

Display: TN screen

Operating temperature: 0° – 40°(32°F- 104°F)

Storage temperature: -20° – 60°(-4°F- 140°F )

Dimension: about 175mm x 81mm x 48.5mm

Weight: about 345g

Packing List:

1* Digital multimeter UT89X

1* User manual

1* Test leads

1* Color box

1*
Temperature probe (Only UT89X)
