UNI-T UT61E Digital Multimeter Ture RMS Auto Range 22000 Counts PC Connect AC DC Voltage Current Met...

ر.س 450.00 ر.س 420.00

1 in stock

Compare
SKU: 33004855664 Category: Brand:

Description

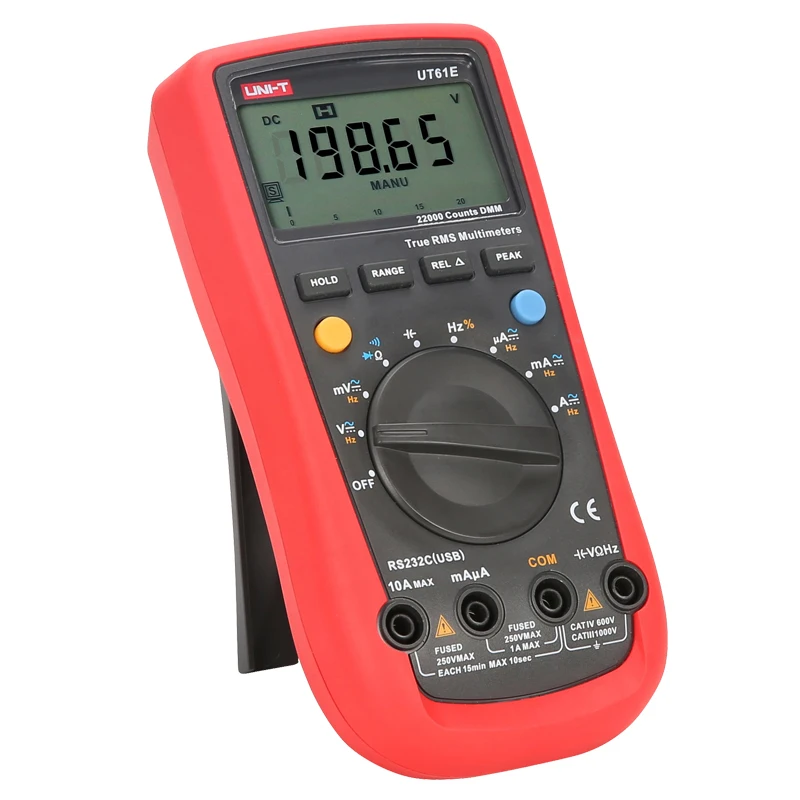

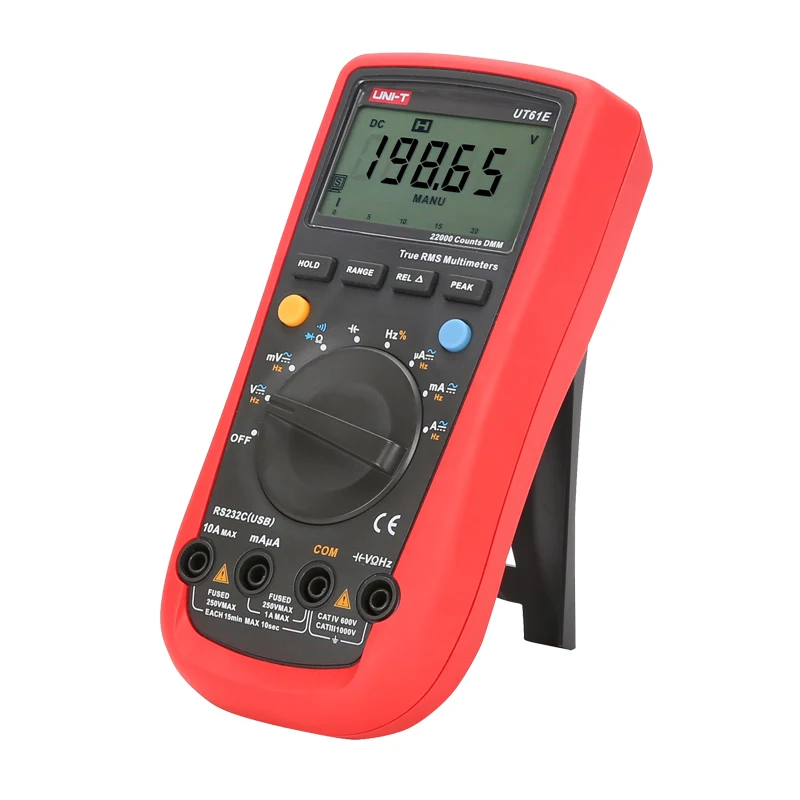

UNI-T UT61E is a True RMS auto range multimeter with 22000 display count, featuring 46 segment analog bar display and 10kHz bandwidth.

>>>>>Highlight

UT61 series complies with CE, ETL, and GS standards. This series is all auto range with selectable True RMS models (UT61D/E). This series has an abundant of features and is combined with high safety rating of CAT IV 600V. It is suitable for advanced electronics and electrical users.

Gifts Include: 1 Pair * Multimeter Probes, 1 Pair * Alligator Clips

>>>>>Technical Data

Specifications

Range

UT61A

UT61B

UT61C

UT61D

UT61E

DC voltage (V)

1000V

±(0.5%+1)

±(0.5%+1)

±(0.5%+1)

±(0.5%+1)

±(0.1%+2)

AC voltage (V)

750V

±(1%+3)

±(1%+3)

±(1%+3)

±(1%+3)

±(0.8%+10)

DC current (A)

10A

±(1%+2)

±(1%+2)

±(1%+3)

± (1%+3)

±(0.5%+10)

AC current (A)

10A

±(1.2%+5)

±(1.2%+5)

±(1.2%+5)

±(1.2%+5)

±(0.8%+10)

Resistance (Ω)

40MΩ

±(1%+2)

±(1%+2)







60MΩ





±(1%+2)

±(1%+2)



220MΩ









±(0.5%+10)

Capacitance (F)

4000μF

±(3%+5)

±(3%+5)

±(3%+5)

±(3%+5)



220mF









±(3%+5)

Frequency (Hz)

10Hz~10MHz

±(0.1%+4)

±(0.1%+4)

±(0.1%+4)

±(0.1%+4)



10Hz~220MHz









±(0.01%+5)

Temperature

-40°C~1000°C



±(1.2%+3)

±(1.2%+3)





-40°F~1832°F



±(1.2%+4)

±(1.2%+4)





Features

Display count



4000

4000

6000

6000

22000

Bandwidth (Hz)



45Hz~400Hz

45Hz~400Hz

45Hz~1kHz

45Hz~3kHz

45Hz~10kHz

Duty cycle

0.1%~99.9%

General Characteristics

Power

9V battery (6F22)(Battery Not Include)

Display

65mm x 43mm

Product color

Red and grey

Product net weight

370g

Product size

180mm x 87mm x 47mm

Standard accessories

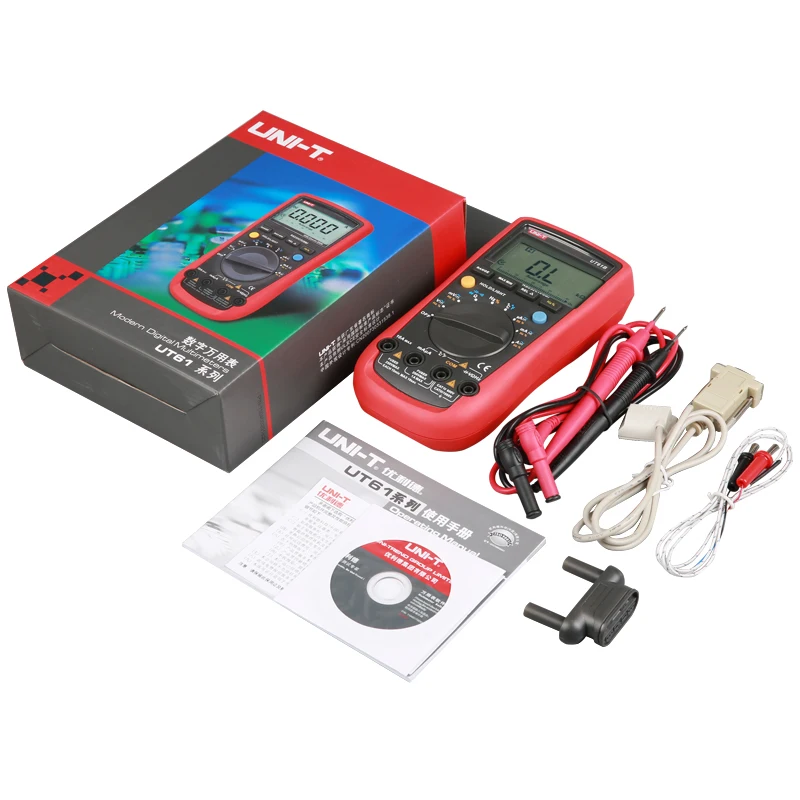

Test leads, multi-purpose socket, RS-232 interface cable (UT61B/UT61C/UT61D/UT61E), PC software CD (UT61B/UT61C/UT61D/UT61E), point contact temperature probe (UT61B/UT61C)
