Description

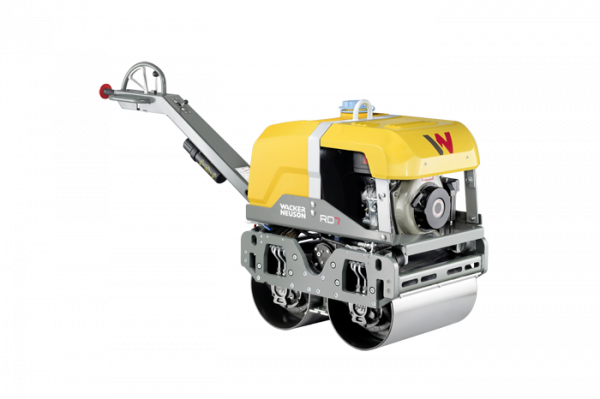

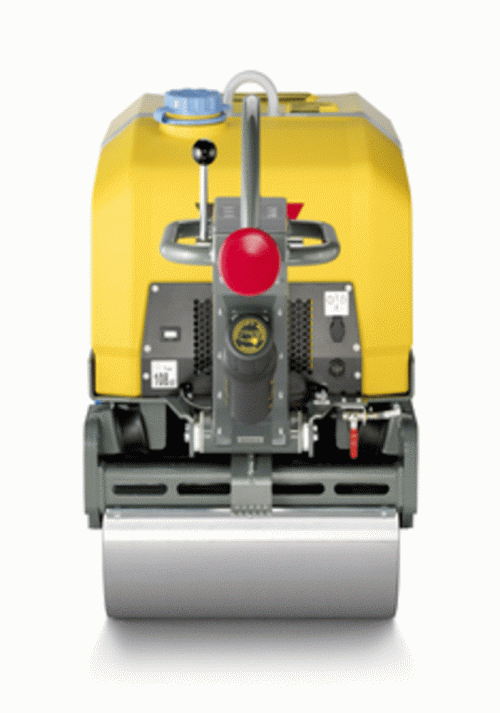

The hand-guided double-drum vibratory roller, RD7, supplies excellent performance in both soil and asphalt compaction – thanks to the optimally integrated frequency and two vibration stages. As a result, the roller is characterized by its ergonomically arranged operator controls, such as, the engine rpm adjuster attached to the drawbar. Even the easy, tool-free access to all service points makes the RD7 a simple and economical solution for every construction site.
- Easy turning as a result of the long drawbar
- Tight side clearance and more curb freedom for clean working on edges, supported by two scraper bars per drum for a cleaner asphalt surface
- Automatic hydraulic parking brake increases safety, especially when on a slope
- Quickly get ready for transport due to the large tie-down points on all sides and a drawbar locking mechanism automatically operable by foot pedal
- Hand-arm vibrations of less than 2.5 m/s² for more working comfort
Ergonomic guide drawbar
- Ergonomically shaped handle and control lever with grip recesses
- Engine speed adjustment directly on the drawbar
- Two vibration levels for working on different surfaces
- Vibration-damped drawbar for comfortable working (HAV < 2.5 m/s²)
Engine and engine protection for every need
- Various engines to choose from: Honda, Hatz, Yanmar
- Full protection: With steel frame and hood
- Partial protection: With steel frame; hood can be retrofitted
- Without engine protection: steel frame and hood can be retrofitted
Convenient water sprinkling system
- A large water tank (60 l) allows long working intervals without refilling
- Water tank opening offset to the transport lifting eye to avoid damage during transport
- Fill level visible from outside
- Water flow quantity adjustable with lever
Quickly ready for transport
- Automatic drawbar lock in transport position and easy release with foot pedal
- Large lifting eyes on all sides
Easy maintenance
- The engine protection hood can be folded without tools and offers generous access to all maintenance points
- The hydraulic oil level can be read at any time from the outside through a viewing window
- Drums and hydraulic lines can be cleaned easily thanks to robust connections
RD7 Technical specifications
| RD7Y | RD7H | RD7A | |
|---|---|---|---|
Operating data |
|||
| Operating weight min. kg | 697 | 717 | 687 |
| Operating weight max. kg | 710 | 735 | 690 |
| L x W x H Drawbar in working position mm | 2,467 x 2,467 x 1,200 | 2,467 x 720 x 1,200 | 2,467 x 720 x 1,200 |
| L x W x H Drawbar in the transport position mm | 1,351 x 720 x 1,990 | 1,351 x 720 x 1,990 | 1,351 x 720 x 1,990 |
| Drum width mm | 650 | 650 | 650 |
| Drum diameter mm | 400 | 400 | 400 |
| Lateral Overhang Right mm | 30 | 30 | 30 |
| Lateral Overhang Left mm | 30 | 30 | 30 |
| Curb clearance Right mm | 22.5 | 22.5 | 22.5 |
| Curb clearance Left mm | 22.5 | 22.5 | 22.5 |
| Centrifugal force max. kN | 22.5 | 22.5 | 22.5 |
| Frequency Stage I Hz | 46 | 46 | 46 |
| Frequency Stage II Hz | 56 | 56 | 56 |
| Linear force – front / rear Static N/mm | 5.3 / 5.3 | 5.3 / 5.3 | 5.3 / 5.3 |
| Linear force – front / rear Dynamic N/mm | 17.3 / 17.3 | 17.3 / 17.3 | 17.3 / 17.3 |
| Travel speed Forward km/h | 4.5 | 4.5 | 4.5 |
| Travel speed Reverse km/h | 2.5 | 2.5 | 2.5 |
| Surface capacity m²/h | 2,895 | 2,895 | 2,895 |
| Gradeability % | 33 | 33 | 33 |
| Hand-arm vibrations m/s² | < 2.5 | < 2.5 | < 2.5 |
Engine / Motor |
|||
| Engine / Motor type | Air-cooled, one-cylinder, four-stroke diesel engine | Air-cooled, one-cylinder, four-stroke diesel engine | Air-cooled, one-cylinder, four-cycle gasoline engine |
| Engine / Motor manufacturer | Yanmar | Hatz | Honda |
| Engine / Motor manufacturer – Available variants | Yanmar, Hatz, Honda | Yanmar, Hatz, Honda | Yanmar, Hatz, Honda |
| Displacement cm³ | 445 | 445 | 389 |
| Operating performance kW | 6 | 6.1 | 5.6 |
| at rpm rpm | 2,600 | 2,600 | 2,600 |
| Engine performance kW | 6.8 | 7.5 | 8.7 |
| at rpm rpm | 3,600 | 3,600 | 3,600 |
| CO2 (NRSC) g/kWh | 964 | 1,020.16 | 743 |
Filling capacities |
|||
| Fuel tank capacity l | 6.1 | 6.1 | 6.1 |
| Water tank capacity l | 60 | 60 | 60 |
