Description

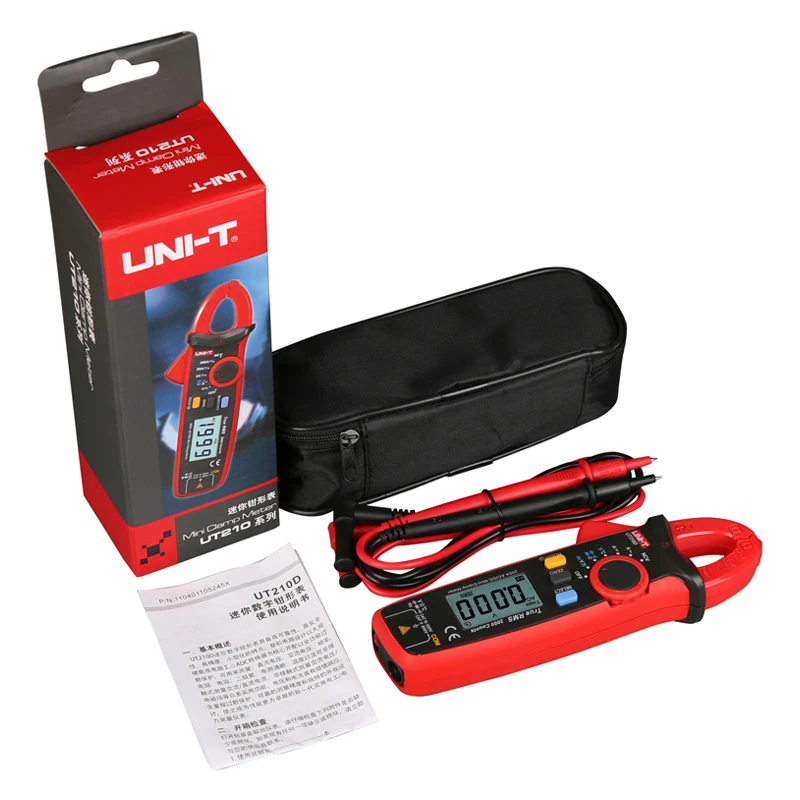

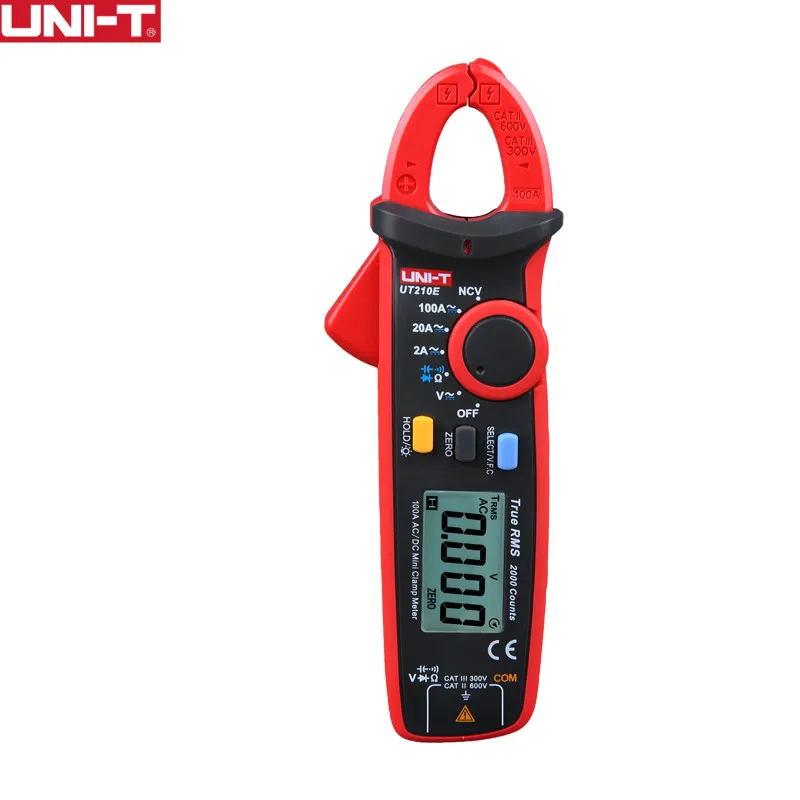

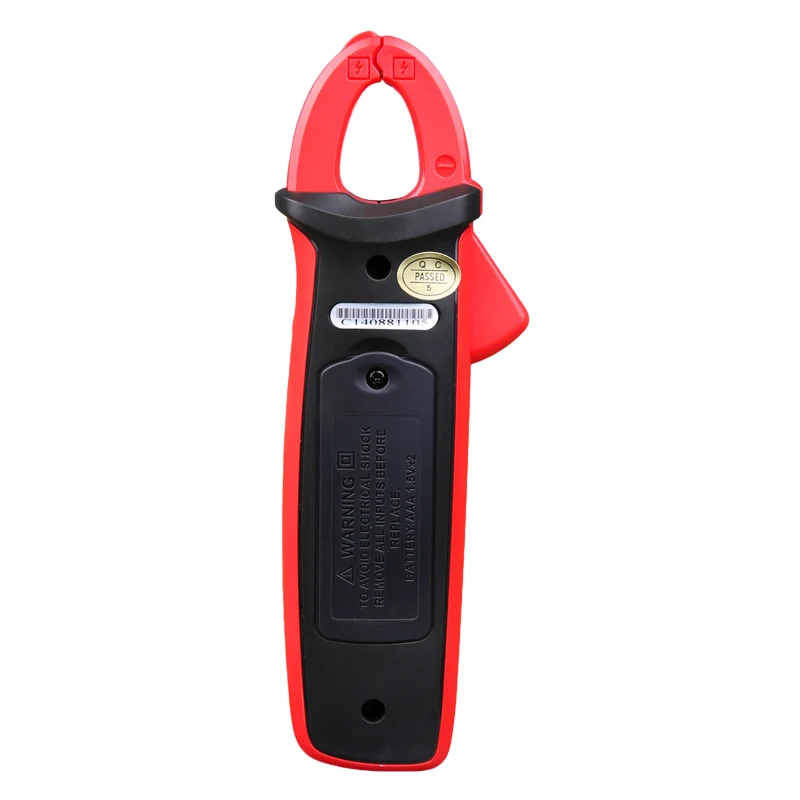

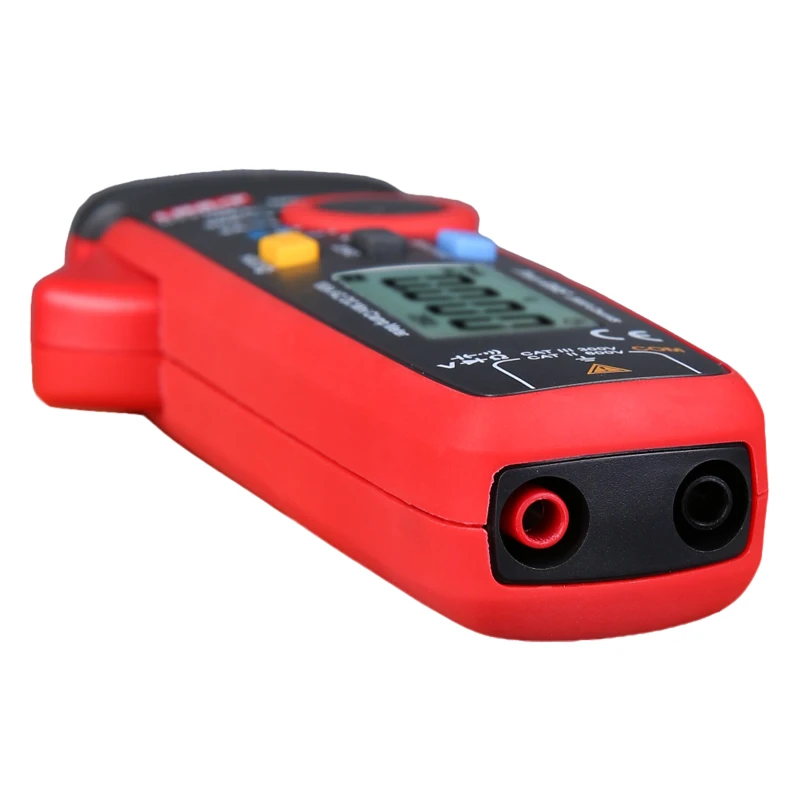

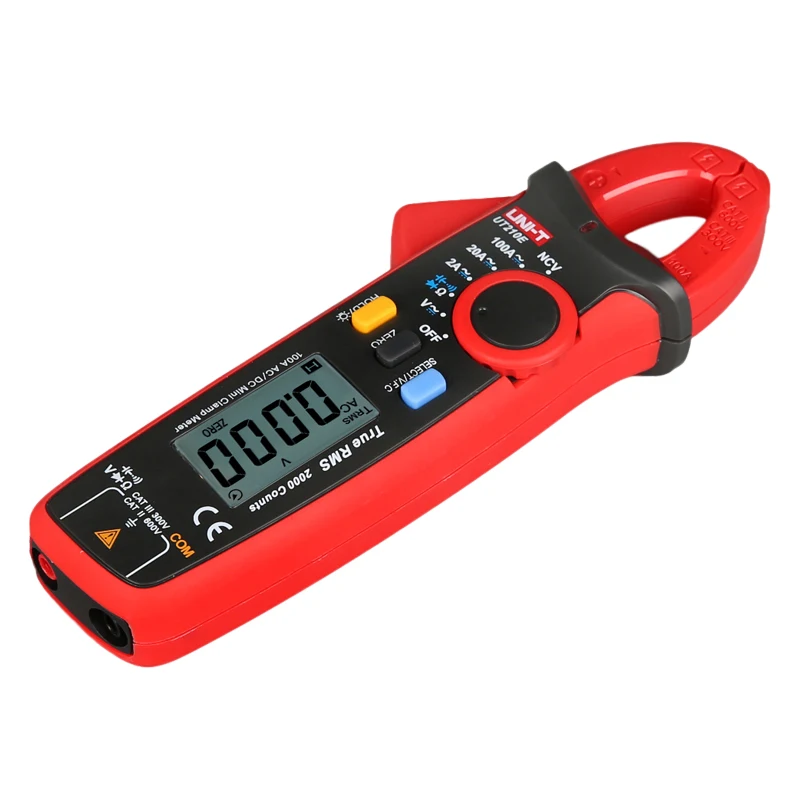

UNI-T UT210E True RMS Mini Digital Clamp Meters AC/DC Current Voltage Auto Range VFC Capacitance Non Contact Multimeter Diode
>>>>>Highlight
- Ultra-portable tools for advance electricians, true rms response for ac current
- 100A AC and DC current measurement with 1mA resolution, V.F.C function for measuring signal at varia
- 600V ac and dc voltage measurement, resistance, diode, continuity and capacitance functions
- Non-contact voltage detection with led indication, display backlight
- Data hold, max, min, max-min, and zero mode
>>>>>Technical Data
|
Specifications |
Range |
UT210A |
UT210B |
UT210C |
UT210D |
UT210E |
|
AC current (A) |
200A |
±(2.5%+20) |
±(2.5%+20) |
±(2%+10) |
±(2.5%+8) |
|
|
100A |
|
|
|
|
±(2.5%+5) |
|
|
DC current (A) |
200A |
|
|
|
±(2%+3) |
|
|
100A |
|
|
|
|
±(2%+3) |
|
|
AC voltage (V) |
600V |
|
|
±(1%+3) |
±(1%+3) |
±(1%+3) |
|
DC voltage (V) |
600V |
|
|
±(0.7%+3) |
±(0.7%+3) |
±(0.7%+3) |
|
Resistance (Ω) |
20MΩ |
|
|
±(1%+2) |
±(1%+2) |
±(1%+2) |
|
Frequency (Hz) |
60kHz |
|
|
|
±(0.1%+4) |
|
|
Capacitance (F) |
20mF |
|
|
±(4%+5) |
±(4%+5) |
±(4%+5) |
|
Temperature |
-40~1000℃ |
|
|
±(1%+3) |
±(1%+3) |
|
|
-40~1832℉ |
|
|
±(1.5%+5) |
±(1.5%+5) |
|
|
|
Features |
||||||
|
Display count |
|
2000 |
2000 |
2000 |
2000 |
2000 |
|
Continuity buzzer |
|
√ |
√ |
√ |
√ |
√ |
|
Auto range |
|
|
|
√ |
√ |
√ |
|
Jaw opening |
|
16mm |
16mm |
17mm |
17mm |
17mm |
|
Diode test |
Around 3.0V |
|
|
√ |
√ |
√ |
|
General Characteristics |
||||||
|
Power |
1.5V battery (R03) x 2(Battery Not Include) |
|||||
|
Display |
39.3mm x 26.5mm |
|||||
|
Product color |
Red and grey |
|||||
|
Product net weight |
UT210A/B: 150g; UT210C/D/E: 170g |
|||||
|
Product size |
UT210A/B: 158mm x 60mm x 33.5mm; UT210C/D/E: 175mm x 60mm x 33.5mm |
|||||
|
Standard accessories |
Batteries, test leads (UT210C/UT210D/UT210E), point contact temperature probe (UT210C/UT210D) |
|||||
>>>>>Picture Show
>>>>>About Us
We are one of the largest agents of UNI-T.
Advantages of us:
-We provide lifetime technical support
-All of our products are official authorised original UNI-T
-7*24h online after-sale service team to provide complete customer support
-We will choose the most suitable shipping method which will minimize shipping time
>>>>>Buyer Notice
Maintenance
We provide 3 months free maintenance with lifetime technical support.
The buyer should return the product in the original conditions to us. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.
Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.
Special Demand
If you have any special demands, please leave a message to us in your order.
Feedback
If you are not satisfied with our products or service, please feel free to contact us, we will try our best to solve your problem!
Please do not leave negative feedback without any communication. Thanks for your understanding in advance!
Any problems please feel free to contact us.
>>>>>Return&Refund
Reviews
There are no reviews yet.
