Description
Summary

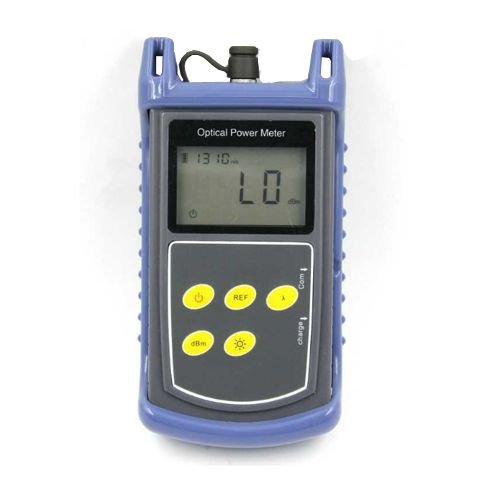

With a wide range of functions, TAC ST800 optical power meter is a powerful tool for use in fiber-optic installation and maintenance. Its rugged, durable construction makes it the perfect choice for a wide range of field applications. It is also aimed to a very low cost optical power meter.
TAC ST800 Optical Power Meter can test optical power within the range of 800~1700nm wave length. There are 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, six kinds of wavelength calibration points. It can be used for linearity and non-linearity test and it can display both direct and relative test of optical power.
This meter can be widely used in the test of LAN, WAN, metropolitan network, CATV net or long-distance fiber net and other situations.
Functions
- Multi-wavelength precise measurement
- Absolute power measurement of dBm or μw
- Relative power measurement of dB
- Auto off function
- Low voltage indication
- FC adapter
- Handheld, large LCD backlight display, easy-to-use
Specifications
|
Wavelength range (nm) |
800~1700 |
|
Detector type |
InGaAs |
|
Standard wavelength(nm) |
850, 1300, 1310, 1490, 1550, 1625 |
|
Power testing range (dBm) |
-50~+26 or -70~+10 |
|
Uncertainty |
±5% |
|
Resolution |
Linearity: 0.1%, Logarithm: 0.01dBm |
|
Connectors |
FC |
|
Working temperature (℃) |
-10~+50 |
|
Storage temperature (℃) |
-30~+60 |
|
Weight (g) |
210 |
|
Dimension (mm) |
160×76×28 |
|
Battery |
2 pcs AA batteries |
|
Batteryworking duration(h) |
No less than 75 (according to battery volume) |
|
Auto power off time (min) |
10 |
