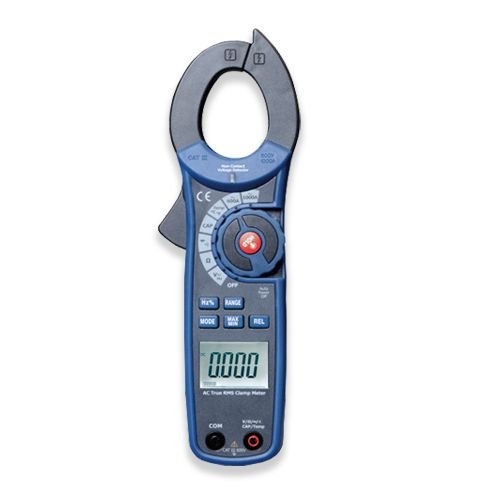

Description
- Double-molded plastic housing.
- AC True RMS.
- 1.57-inch (40mm) jaw opening.
- Built-in Non-Contact Voltage detection.
- Backlit display.
- LCD display with 6000 counts.
- Auto Power Off.
- Data hold.
- Analog bar graph (61 seg.)
- Displays maximums and minimums.
- REL (Zero) function.
- Low-battery indication.
Specifications:
|
Function |
Maximum Range |
Basic Accuracy |
|
Voltage DC |
600V |
±(0.5%+1d) |
|
Voltage AC |
600V |
±(1.5%+2d) |
|
Current AC |
1000A |
±(2.5%+4d) |
|
Resistance |
60MΩ |
±(3.0%+5d) |
|
Temperature |
1000°C/ 1832°F |
±(3.0%+3d) |
|
Capacitance |
4000uF |
±(2.5%+5d) |
|
Frequency |
10MHz |
±(1.2%+2d) |
|
Continuity check |
Buzzer sounds at 50Ω |
|
|
Diode test |
Test current 0.3mA |
|
