Description
Mini Digital Clamp Meters AC/DC Current Voltage Auto Range VFC Capacitance Non Contact Multimeter Diode UNI-T UT210E True RMS
Battery not included becuase the customs inspection!!!
Since there are no jacks on the UT210A and UT210B instruments, there are no gifts (multimeter probe and alligator clips)
Note:
1.UT210A and UT210B Only support AC Current.
2.UT210C support AC Current,AC/DC Voltage,Resistance,Capacitance,Temperature
3.UT210E support AC/DC Current,AC/DC Voltage,Resistance,Capacitance
4.UT210D support above all
Packing list:
1*Clamp meter
1*Test leads(Except UT210A & UT210B)
1*Pouch bag(Except UT210A & UT210B)
1*English user manual
1*Color box
1*Point contact temperatrue probe(Except UT210A & UT210B &UT210E)
Specifications:
Best accuracy
| Model Number | UT210A | UT210B | UT210C | UT210D | UT210E |
| AC Current(A) | 2A/20A/200A | ±(2.5%+5) | ±(2.5%+5) | ||
| 20A/200A | ±(1.8%+9) | ±(2.5%+8) | |||
| 2A/20A/200A | ±(2.5%+5) | ||||
| DC Current(A) | 20A/200A | ±(2%+3) | |||
| 2A/20A/200A | ±(2%+3) | ||||
| AC Voltage(V) | 2V/20V/200V/600V | ±(1%+3) | ±(1%+3) | ±(1%+3) | |
| DC Voltage(V) | 200mV/2V/20V/200V/ 600V | ±(0.7%+3) | ±(0.7%+3) | ±(0.7%+3) | |
| Resistance(Ω) | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(1%+2) | ±(1%+2) | ±(1%+2) | |
| Frequency | 10Hz/100Hz/1kHz/ 10kHz/60kHz | ±(0.1%+4) | |||
| Capacitance(F) | 20nF/200nF/2µF/20µF /200µF/2mF/20mF |
±(4%+5) | ±(4%+5) | ±(4%+5) | |
| Temperature(°) | -40~1000° | ±(1%+3) | ±(1%+3) | ||
| Temperature(°) | -40~1832° | ±(1.5%+5) | ±(1.5%+5) |
UNI-T UT210A’s jaw (17mm) is convenient for you to use in narrow working environments. It is an essential tool for all kinds of indoor mechanical and electrical equipment maintenance, home appliance installation and electricians.
Main Features
1. Auto range, 2~3/s sampling rate
2. MAX mode
3. LCD backlight, data hold
4. Auto power off, low battery indication and overload protection
5. Ergonomic and lightweight
UNI-T’s UT210B mini clamp meter is a 200A True RMS digital clamp meter with 2000 display count. It is a lightweight, portable, and ergonomic device.
Features
1. NCV
2. MAX/MIN
3. Ergonomic and lightweight
4. Auto range, 2~3/s sampling rate
5. True RMS
6. LCD backlight, data hold
7. Auto power off, low battery indication
8. Relative mode
UNI-T’s UT210C is a mini 200A True RMS digital clamp meter with features of auto range and Min/Max measurement. It is convenient to use in narrow space.
Features
1. NCV
2. MAX/MIN
3. Ergonomic and lightweight
4. Auto range, 2~3/s sampling rate
5. True RMS
6. LCD backlight, data hold
7. Auto power off, low battery indication
UNI-T’s UT210D is a mini 200A True RMS auto range digital clamp meter with 2000 display count. It is a portable and multifunctional device.
UT210D Features:
High precision frequency measurement function
1.Auto range,2-3/s sampling rate
2.True RMS measurement
3.LCD backlight,data hold
4.NCV,Non-contact voltage testing function:induce electric field strength via the jaw
5.Auto power off,low battery indication and overload protection
6.Comfortable to hold and easy to carry with
7.Zero mode

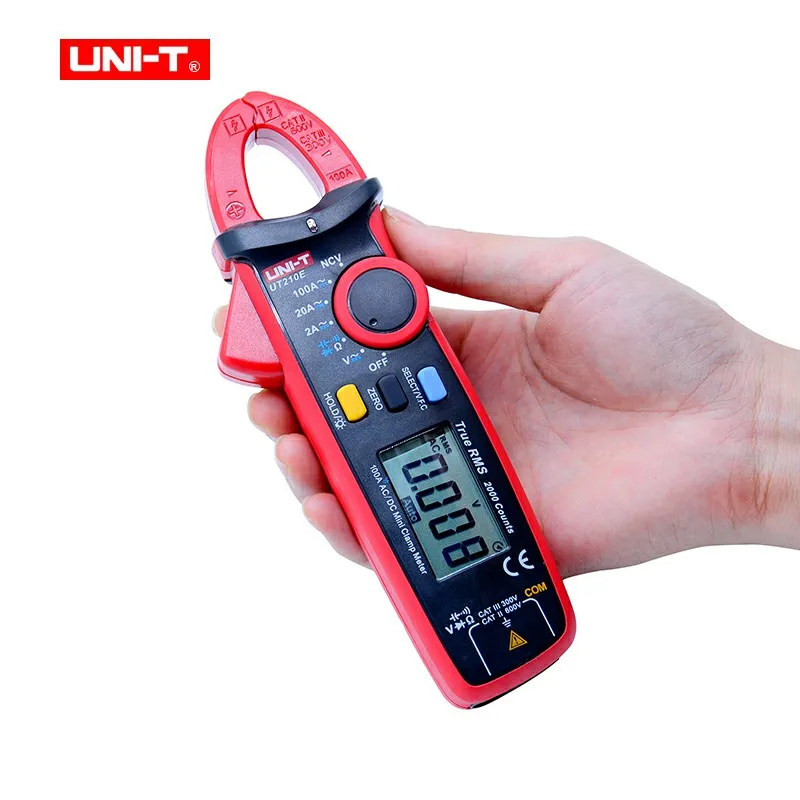

UNI-T’s UT210E is a mini 100A True RMS auto range digital clamp meter with 2000 display count and VFC function. It is convenient to use in narrow space.
UT210E Features:
Minimum resolution 1mA maximum range 100A
1.Auto range,2-3/s sampling rate
2.True RMS measurement
3.LCD backlight,data hold
4.NCV,Non-contact voltage testing function:induce electric field strength via the jaw
5.Auto power off,low battery indication and overload protection
6.Comfortable to hold and easy to carry with
7.Zero mode
8.VFC,frequency conversion function
