Description
Features:

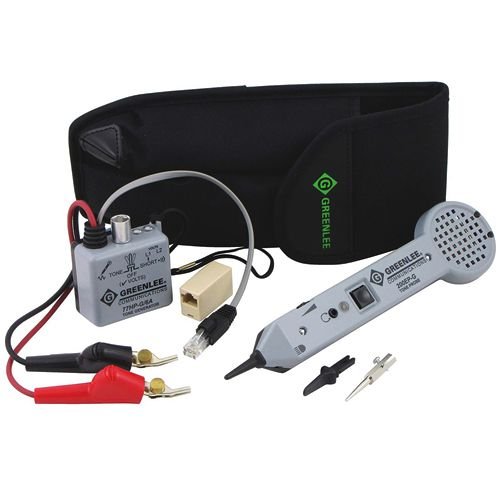

Consisting of the 77HP-G/6A Tone Generator and the 200EP-G Tone Probe, this kit features adjustable volume control, continuity & polarity LED, external warble select, test telephone port, headset jack, LED flashlight, RJ11 & RJ45 sockets, LED signal indicator, short circuit LED/Beeper, replaceable tip and ABN connector clips.
Specifications for 77MHP-G
|
Talk Battery |
4.6 VDC |
|
Resistive Short Visual Indication |
<10 k ohms |
|
Resistive Short Audio Indication |
<200 ohms |
|
Output Power into 600 ohms |
+10 dBm |
|
Voltage Protection at 600 ohms |
150 VDC |
|
Output Frequency (Nominal) |
Alternating-890/960 Hz, Warbling-Slow: 1.3Hz/Fast: 6Hz |
Specifications for 77MHP-G
|
Battery |
9VDC |
|
Plastic Tip Resistance |
300 Ohms |
|
Metal Tip Resistance |
0 Ohms |
|
Input impedance l |
100M Ohms |
|
Gain (nominal) |
30 dB |
|
Operating/Storage Temperature |
0° C to 50° C (30° F to 122° F) |
