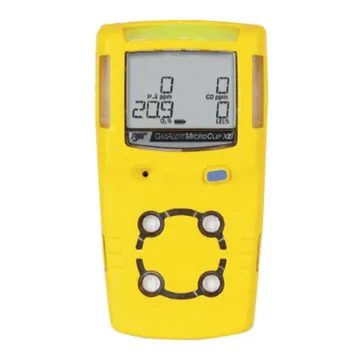

BW™ MicroClip XL Serviceable Multi Gas Detector
Small size. Easy to use. Reliable operation. Affordable protection.
With that combination of benefits, it’s no wonder the Honeywell BW™ MicroClip is the world’s most popular multi-gas detector, serving as your trusted companion in hazardous environments — keeping you safe without weighing you down. Plus, it’s the first multi-gas detector with a rating of IP68 for unmatched water protection — up to 45 minutes at a depth of 1.2m. So you can be confident it will stand up to challenging conditions.
With extended 18-hour battery runtime, one‑button operation and Honeywell’s rigorous approach to quality.
Honeywell BW™ MicroClip XL: low up-front cost with a two-year warranty.
Use our unique advanced technology for safety, compliance and productivity.
- Advanced engineering for reliable battery performance
- Reflex™ Technology to ensure sensor responsiveness
- Compact, lightweight and easy to use — no expertise required
- Flashing green IntelliFlash™ light for compliance at a glance
Optional Accessories
- Honeywell IntelliDoX Automated Test System
- Honeywell BW™ Connect
- IR connectivity kit
- Five unit cradle charger
Features & Benefits
- Guaranteed runtime for at least a 12-hour shift — down to -20°C — without compromising LEL detection of hydrogen, acetylene and other combustible gases
- Durable, rechargeable lithium-polymer battery — tested to last in extreme environments
- Ergonomic and wearable — doesn’t weigh you down
- Real-time gas concentrations are shown on LCD
- Bright, wide-angle visual alarm bars
- IP68 rating ensures maximum protection against dust and water — up to 45 minutes at a depth of 1.2m
- User-friendly, tamperproof operation with just one button and intuitive LCD icons
- IntelliFlash™ light indicating detector has been bump tested and is monitoring correctly
- Self-test of sensors, battery status, circuit integrity and audible/ visual alarms on startup
- Compatible with IntelliDoX docking station for automated bump tests and calibration
- Multi-language support in English, French, German, Spanish and Portuguese
- Device Management with Honeywell SafetySuite
- Compatible with Honeywell BW™ Connect for real-time monitoring
Sensor Specifications
| Gas | Measuring Range | Resolution |
| Combustible Gases (LEL) | 0-100% LEL | 1% LEL |
| Hydrogen Sulphide (H2S) | 0 -100 ppm | 1 ppm |
| Carbon Monoxide (CO) | 0 – 500 ppm | 1 ppm |
| Oxygen (O2) | 0-30.0% Vol. | 0.1% Vol. |
Technical Specifications
| Size | 11.3 x 6.0 x 3.2 cm |
| Weight | 190 g |
| Temprature | -20 to +50°C |
| Humidity | 0% – 95% RH (non-condensing) |
| Alarms | Visual, vibrating, audible (95 dB) • Low, High, TWA, STEL, OL (over limit) |
| Tests | Audible/visual alarms on activation; sensors, battery and circuitry (continuous) |
| Typical Battery Life | 18 hours; recharges in less than 6 hours |
| User Options | • Confidence beep |
| • Set STEL interval | |
| • Sensor on/off | |
| • Latching alarms | |
| • Safe display mode | |
| • Stealth mode | |
| • Calibration lock | |
| • Auto zero on startup | |
| • O2 auto-calibration on startup | |
| • Set bump test interval | |
| • Force bump test when overdue | |
| Ratings | IP68 – up to 45 minutes at 1.2 m |
| EMI/RFI: Complies with EMC Directive 2004/108/EC | |
| Warranty | Full two‑year (Honeywell BW™ MicroClip XL) warranty |
| including all sensors |
