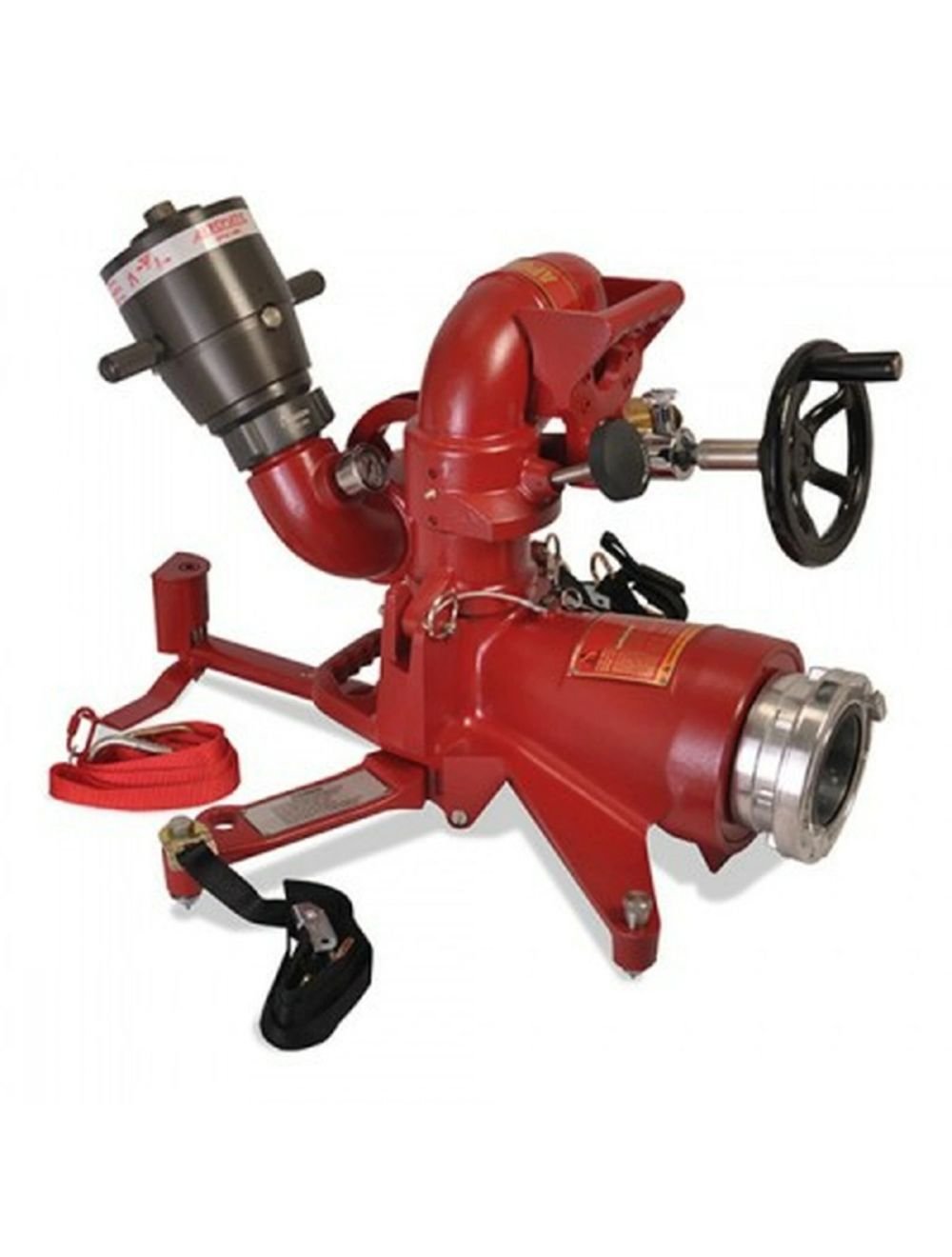

AKRON Hydrant Mount With Ground Legs Fixed Monitor – 2775
The Style 2775 hydrant mount permits a fixed site monitor such as the Aries, Omega or Bronco to be mounted to a 21/2” (65 mm) hydrant port. Height adjustment from the ground to center of the hydrant discharge is 17 1/2″ (445 mm) to 28″ (712 mm)
Specifications
- Length: 9 1/2″ from the swivel to the middle of flange
- 2 1/2″ swivel inlet
- 3″ (75 mm) or 4″ (100 mm) flange outlet – Must specify
- Weight: 41 lbs. (18.6 kg)
- Style: 2775
- Maximum operating pressure 100 psi (7 bar)
- Maximum flow 1200 gpm (4500 lpm
