Features:
1. 100% pure copper winding.
2. Rolling bearing, NSK low noise high quality material.
3. Brass terminals plug-in.
4. Silicon steel shaft, nickel plating treatment.
5. Steel enclosure, electrophoretic coating treatment.
6. 100% pure silicon steel stator and rotator.
Product Applications:
1. Window machine, window air conditioner, window type air conditioner
2. Condenser
3. Air conditioning related equipments

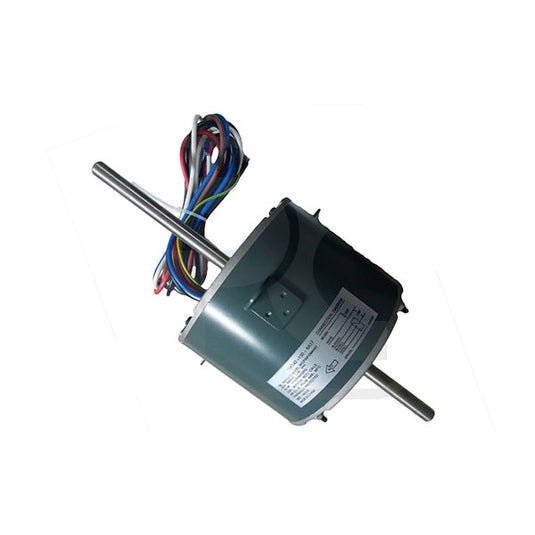

| Product Type | Premium Window Air Conditioner Motor |
| Applications | – Window machine, window air conditioner, window type air conditioner – Condenser – Air conditioning related equipments |
| Materials | – 100% pure copper winding – NSK low noise high-quality rolling bearing – Brass terminals plug-in – Silicon steel shaft with nickel plating – Steel enclosure with electrophoretic coating – 100% pure silicon steel stator and rotator |
| Power Range | 1/5HP |
| Customization | Dimensions and parameters can be customized according to customer requirements, OEM/ODM offered |
Parameters:
Note: Listed are representative motors, only for reference, dimensions and parameters can be customized according to customer requirements, OEM/ODM offered.
| Model Number | Voltage (V) | Frequency (Hz) | Power | Speed (RPM) | Rotation | Capacitor (MDF/VAC) | OEM Model |
|---|---|---|---|---|---|---|---|
| YSK140/30-150-4 | 220/230 | 50 | 1/5HP | 1200/3 SPD | REVERSIBLE | 5/370 | – |
| YSK140-150-6A | 208-230 | 60 | 1/5HP | 1115/3 SPD | CCW-LE | 5/370 | 5KCP39FGM4440 |
| YSK140-150-6A2 | 208-230 | 60 | 1/5HP | 1075/3 SPD | CW-LE | 4/370 | 5KCP39FGM672S |
| YSK140-150-6A3 | 208-230 | 60 | 1/5HP | 1100/2 SPD | CW-LE | 5/370 | 5KCP39FGM639T |
| YSK140-150-6A4 | 208-230 | 60 | 1/5HP | 1115/3 SPD | CW-LE | 5/370 | F48U01A30 |
| YSK140-150-6A5 | 208-230 | 60 | 1/5HP | 1050/3 SPD | CW-LE | 5/370 | 5KCP39HGS635S |
| YSK140-150-6A6 | 208-230 | 60 | 1/5HP | 1100/3 SPD | CCW-LE | 5/370 | K55HXLEK-5966 |
| YSK140-150-6A7 | 208-230 | 60 | 1/5HP | 1100/3 SPD | CCW-LE | 5/370 | ACE-000-33C |
| YSK140-150-6A10 | 208-230 | 60 | 1/5HP | 1050/3 SPD | CW-LE | 5/370 | F48533B382U-Y |
| YSK140-150-6A14 | 208-230 | 60 | 1/5HP | 1050/2 SPD | REVERSIBLE | 4/370 | K55ZZEHN-4921 |
| YSK140-150-4A21 | 208-230 | 60 | 1/5HP | 1625/3 SPD | CCW-LE | 5/370 | D775 |
| YSK140-150-4A22 | 115 | 60 | 1/5HP | 1625/3 SPD | CCW-LE | 5/370 | D776 |
| YSK140-150-4A | 208-230 | 60 | 1/5HP | 1350/2 SPD | CCW-LE | 5/370 | KA5HXNGT-9416C |
| YSK140-150-4A2 | 208-230 | 50 | 1/5HP | 1360/3 SPD | REVERSIBLE | 5/400 | PM410 |
