Product materials:
1. Brass terminals plug-in
2. Silicon Steel for Rotor and Stator.
3. Nickel plating for Steel Shaft.
4. Copper enameled wire winding.
5. NSK low noise high-quality rolling bearing.
6. Electrophoretic coating for steel enclosure.
Product application:
1. Various kinds of air coolers, commercial and residential.
2. Air conditioning system.

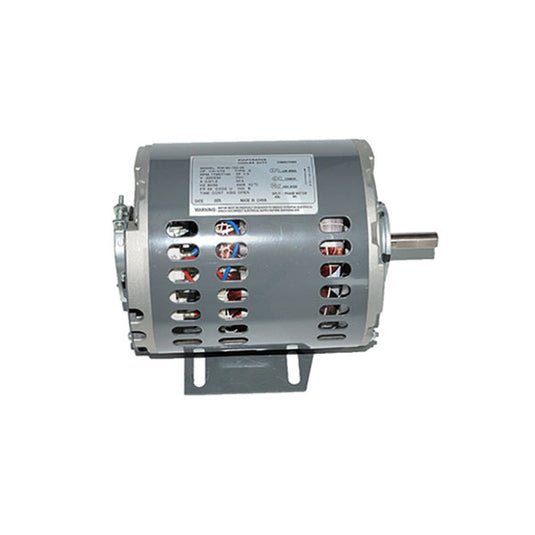

| Product Type | Air Cooler and Conditioning System Motor |
| Applications | – Various kinds of air coolers (commercial and residential) – Air conditioning systems |
| Materials | – Brass terminals plug-in – Silicon Steel for Rotor and Stator – Nickel plated Steel Shaft – Copper enameled wire winding – NSK low noise high-quality rolling bearing – Electrophoretic coating for steel enclosure |
| Insulation Class | B |
| Available Power Range | 1/5HP – 1HP |
| Rotation Options | CCW, CW-SE |
Product specification:
| Model | Power (HP) | Voltage (V) | Frequency (Hz) | Speed (RPM) | Rotation | Insulation Class |
|---|---|---|---|---|---|---|
| YDK140-150-6T5 | 1/5 | 220-240 | 50 | 850/3 SPD | CCW | B |
| YDK160-185-4A | 1/4 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-185-4A2 | 1/4 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-245-4A | 1/3 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-245-4A2 | 1/3 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-375-4A | 1/2 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-375-4A2 | 1/2 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-550-4A | 3/4 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-550-4A2 | 3/4 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-735-4A | 1 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-735-4A2 | 1 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
