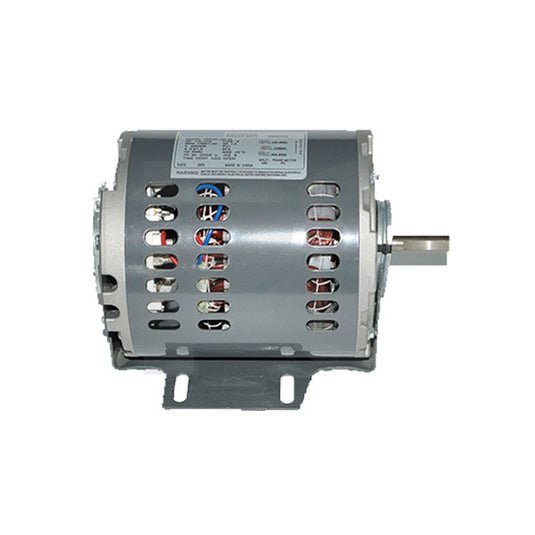

220V 1/4HP Air Cooler Motor with HVAC Electric Motor 1425 / 1725 RPM 50 / 60 Hz

Description

Motor feature:

1. Being adapted internationally famous qualified low noise ball bearing, it makes motor long life and no need for more oil supply.

2. High waterproof grad.

3. Customized aluminum shell, high efficiency, low noise.

4. It adopts high-quality thermoset encapsulation materials.

Motor application:

1. Different kinds of ventilation equipment.

2. Central air conditioner outdoor fan.

3. Insulation class E/B/F, protection class IP20~IP54.

4. Bearing: rolling bearing, NSK low noise high-quality material.

Product Type	Ventilation Equipment Motor
Applications	– Different kinds of ventilation equipment – Central air conditioner outdoor fan
Shell Material	Iron or Aluminum (varies by model)
Insulation Class	E/B/F
Protection Class	IP20~IP54
Bearing Type	NSK low noise high-quality rolling bearing
Features	– Long life with no need for additional oil supply – High waterproof grade – High efficiency, low noise – High-quality thermoset encapsulation materials

Motor specification – Iron Shell Series:

Type	Shell	Power	Frequency	Voltage	Speed	AMPS (A)
YDK100-6	Iron	100W	50Hz	220V	850/700	0.85
YDK150-6	Iron	150W	50Hz	220V	800/600	800
YDK-200-6	Iron	200W	50Hz	220V	830/600	830
YDK-270-6	Iron	270W	50Hz	220V	630/400	630
YDK-380-6	Iron	380W	50Hz	220V	680/400	680
YDK-450-6	Iron	450W	50Hz	220V	1000	1000
YDK-550-6	Iron	550W	50Hz	220V	900	900

Motor specification – Aluminum Shell Series:

Type	Shell	Power	Frequency	Voltage	Speed	AMPS (A)
YS-250-6	Aluminum	250W	50Hz	380-415V	925	0.9
YS-370-6	Aluminum	370W	50Hz	380-415V	925	1.3
YS-550-6	Aluminum	550W	50Hz	380-415V	925	1.4
YS-750-6	Aluminum	750W	50Hz	380-415V	720	2.5
YS-120-8	Aluminum	120W	50Hz	380-415V	925	1
YS-370-8	Aluminum	370W	50Hz	380-415V	720	1.5
YS-550-8	Aluminum	550W	50Hz	380-415V	710	2
YS-750-8	Aluminum	750W	50Hz	380-415V	710	–
