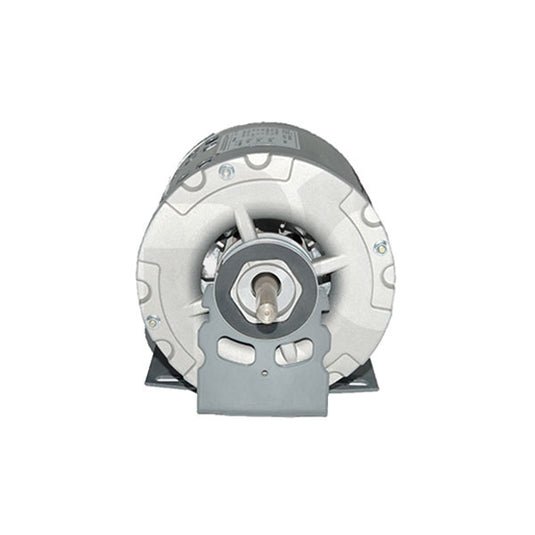

160 Series 2 Speed Cooling Fan Motor With B Insulation Class CW-SE ROT

Description

Product materials:

A. Bearing: rolling bearing, NSK low noise high-quality material.

B. Brass terminals plug-in.

C. Shaft: single shaft, nickel plating treatment.

D. Enclosure: electrophoretic coating treatment.

E. Winding: 100% pure copper.

Product features:

A. Imported equipment & technical assistance.

B. Long Expectancy.

C. UL, CE & ISO9001 are offered by us.

Product Type	Electric Motor with UL/CE/ISO9001 Certification
Materials	– NSK low noise high-quality rolling bearing – Brass terminals plug-in – Nickel plated single shaft – Electrophoretic coated enclosure – 100% pure copper winding
Features	– Imported equipment & technical assistance – Long Expectancy – UL, CE & ISO9001 certified
Insulation Class	B

Product specification:

Model	Power (HP)	Voltage (V)	Frequency (Hz)	Speed (RPM)	Rotation	Insulation Class
YDK140-150-6T5	1/5	220-240	50	850/3 SPD	CCW	B
YDK160-185-4A	1/4	115/127	50/60	1425/1725	CW-SE	B
YDK160-185-4A2	1/4	220/230	50/60	1425/1725	CW-SE	B
YDK160-245-4A	1/3	115/127	50/60	1425/1725	CW-SE	B
YDK160-245-4A2	1/3	220/230	50/60	1425/1725	CW-SE	B
YDK160-375-4A	1/2	115/127	50/60	1425/1725	CW-SE	B
YDK160-375-4A2	1/2	220/230	50/60	1425/1725	CW-SE	B
YDK160-550-4A	3/4	115/127	50/60	1425/1725	CW-SE	B
YDK160-550-4A2	3/4	220/230	50/60	1425/1725	CW-SE	B
YDK160-735-4A	1	115/127	50/60	1425/1725	CW-SE	B
YDK160-735-4A2	1	220/230	50/60	1425/1725	CW-SE	B
